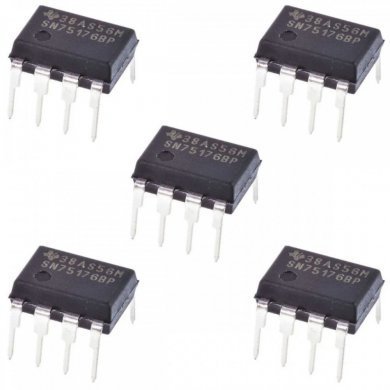

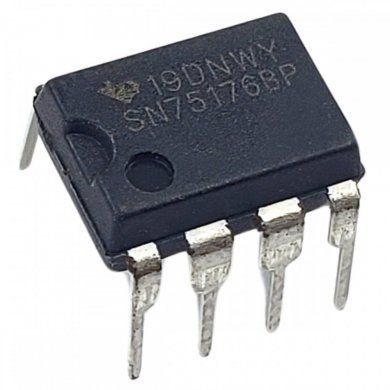

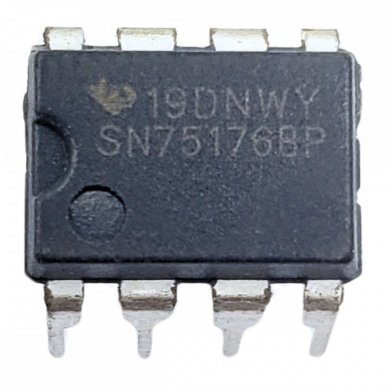

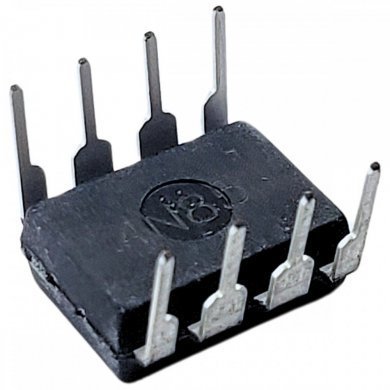

SN75176BP CI de Interface RS422 e RS485 DIP8 (kit com 5 und)

kit com 5 unidades

SN75176BP CI de Interface RS422 e RS485 DIP8 (kit com 5 und)

*As imagens podem ser ilustrativas

CI de Interface RS422 e RS485 DIP8 (kit com 5 und)

em estoque, envio imediato

R$ 20,50

à vista no Pix ou Boleto

ou R$ 21,58 em 1x no cartão (via site)

ou R$ 22,78 no cartão em até 10x sem juros (apenas na loja física)

R$ 20,50

à vista no Pix ou Boleto

R$ 21,58
em 1x no cartão (via site)

R$ 22,78 no cartão
em até 10x sem juros
(apenas na loja física)

Adicionar ao carrinho

Condição:

novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

cotar SN75176BP

indicar SN75176BP

R$ 20,50

à vista no pix

Comprar

Condição:
novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

SN75176BP CI de Interface RS422 e RS485 DIP8 (kit com 5 und)
kit com 5 unidades

Condição de SN75176BP: novo em embalagem comercial

Garantia de SN75176BP: 3 meses direto com a Net Computadores

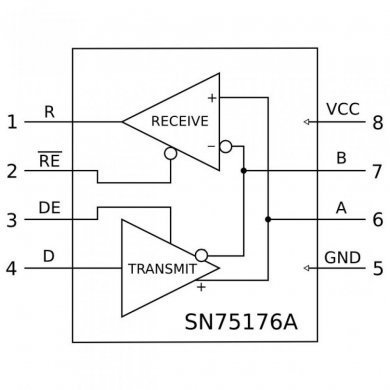

The SN65176B and SN75176B differential bus transceivers are designed for bidirectional data communication on multipoint bus transmission lines. They are designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/ EIA-485-A and ITU Recommendations V.11 and X.27. The SN65176B and SN75176B devices combine a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5- V power supply. The driver and receiver have activehigh and active-low enables, respectively, that can be connected together externally to as a direction control.

The driver differential outputs and the receiver differential inputs are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus when the driver is disabled or VCC 0. These ports feature wide positive and negative common-mode voltage ranges, making the device suitable for partyline applications.

The driver is designed for up to 60 mA of sink or source current. The driver features positive and negative current limiting and thermal shutdown for protection from line-fault conditions. Thermal shutdown is designed to occur at a junction temperature of approximately 150C. The receiver features a minimum input impedance of 12 k-, an input sensitivity of 200 mV, and a typical input hysteresis of 50 mV

Especificações
Fabricante: Texas Instruments
Categoria de produto: CI de Interface RS-422 / RS-485
Estilo de montagem: Orifício de passagem
Caixa / Gabinete: PDIP-8
Série: SN75176B
Função: Transceptor
Taxa de dados: 10Mb/s
Número de motoristas: 1 driver
Número de receptores: 1 receptor
Tensão de alimentação - Mín: 4,75 V
Tensão de alimentação - Máx: 5,25 V
Tensão de alimentação operacional: 5 V
Corrente de Alimentação Operativa: 70 mA
Temperatura operacional mínima: 0 C
Temperatura operacional máxima: 70 C
Produto: Transceptores RS422 / RS485
Duplex: Half Duplex
