Componentes Eletrônicos / Semicondutores / STM1061N38WX6F

STM1061N38WX6F

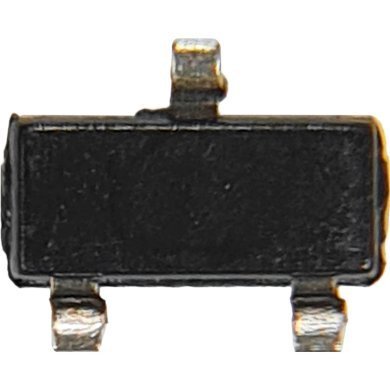

STM1061 Low Power Voltage Detector SOT23-3

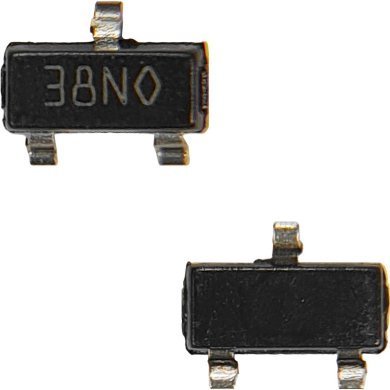

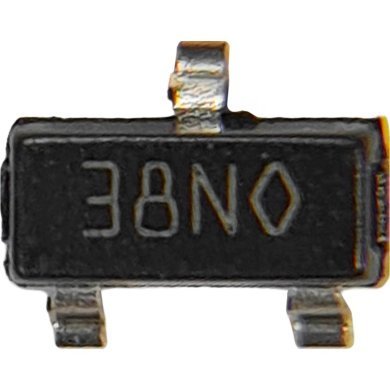

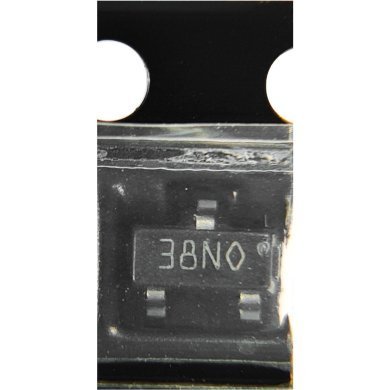

marcação no componente 38N

STM1061N38WX6F - STMicroeletronics
STM1061N38WX6F STM1061 Low Power Voltage Detector SOT23-3
STM1061 Low Power Voltage Detector SOT23-3
*Imagens ilustrativas

STM1061N38WX6F

STM1061 Low Power Voltage Detector SOT23-3

marcação no componente 38N

Garantia:
3 meses direto com a Net Computadores

NCM:
85044060

em estoque, envio imediato

R$ 4,50

À vista já com 5% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou no cartão de crédito por R$ 4,74

Condição exclusiva para o site. Parcelas serão exibidas na tela de pagamento.

R$ 4,50

À vista já com 10% de desconto (boleto/pix). Preço base SP. Informaremos caso incidam impostos interestaduais.

ou R$ 5,00 no cartão de crédito em até 10x sem juros

Condição exclusiva para compras presenciais na loja física.

R$ 4,50

à vista no pix

Condição: novo em embalagem comercial

Garantia: 3 meses direto com a Net Computadores

NCM: 85044060


STM1061N38WX6F STM1061 Low Power Voltage Detector SOT23-3

Condição de STM1061N38WX6F: novo em embalagem comercial

Description The STM1061 low power voltage detector provides monitoring of battery, power-supply, and regulated system voltages. A precision voltage reference and comparator monitors the VCC input and compares it with a specified voltage threshold condition. When VCC falls below a specified trip point threshold, the output (OUT ) is forced low and remains asserted as long as the VCC input remains below VTH-  hysteresis (VHYST). The STM1061 device is guaranteed to output the correct logic state for VCC down to 0.7V. They are also designed to ignore fast transients on VCC. This small, low power device is ideal for portable applications and is available in spacesaving SOT23-3 and SOT323-3 (SC70-3) packages.
  • All features
    • Power Supply Transient Immunity
    • Guaranteed OUT Assertion Down to VCC =0.7V
    • Operating Temperature -40 to 85 C.
    • Factory-trimmed Voltage Thresholds in 0.1V Increments from 1.6 to 5.5V
    • Operating Voltage 0.7 to 6.0V
    • ±2% Voltage Threshold Accuracy
    • Low Supply Current of 0.9µA (typ)
    • Available in SOT23-3 and SOT323-3 (SC70-3) packages
    • Open Drain Output

STM1061N38WX6F STM1061 Low Power Voltage Detector SOT23-3


Maiores detalhes de STM1061N38WX6F no site do fabricante:
https://www.st.com/en/reset-and-supervisor-ics/stm1061.html



Condição de STM1061N38WX6F: novo em embalagem comercial

Tags de STM1061N38WX6F: STM1061N38WX6F2, STM1061N38WX6F, STM1061N, STM1061, M1061, supervisor voltage, Low Power Voltage Detector, Supervisory Circuits Lo Pwr Vltg Detector, detector de voltagem, STM1, ci 1061, ci 38N, ic 38n, triodo 38n, transistor 38N, regulador 38N, STMicroeletronics
