SY8284RAC High Efficiency Fast Response 4A 23V Input

DC/DC Synchronous Step Down Regulator QFN20

SY8284RAC - Silergy Corporation
SY8284RAC High Efficiency Fast Response 4A 23V Input
*As imagens podem ser ilustrativas
High Efficiency Fast Response 4A 23V InputHigh Efficiency Fast Response 4A 23V InputHigh Efficiency Fast Response 4A 23V Input

R$ 26,50

à vista no Pix ou Boleto

ou R$ 27,89 em 1x no cartão (via site)

ou R$ 29,44 no cartão em até 10x sem juros (apenas na loja física)

R$ 26,50

à vista no Pix ou Boleto

R$ 27,89
em 1x no cartão (via site)

R$ 29,44 no cartão
em até 10x sem juros
(apenas na loja física)

Garantia:
3 meses direto com a Net Computadores

NCM:
85423190

R$ 26,50

à vista no pix

Condição:
novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

SY8284RAC High Efficiency Fast Response 4A 23V Input
DC/DC Synchronous Step Down Regulator QFN20

Condição de SY8284RAC:    novo em embalagem comercial

Garantia  de  SY8284RAC:     3 meses direto com a Net Computadores

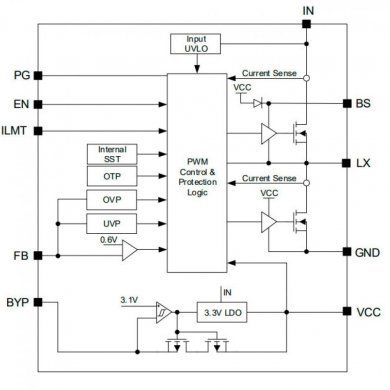

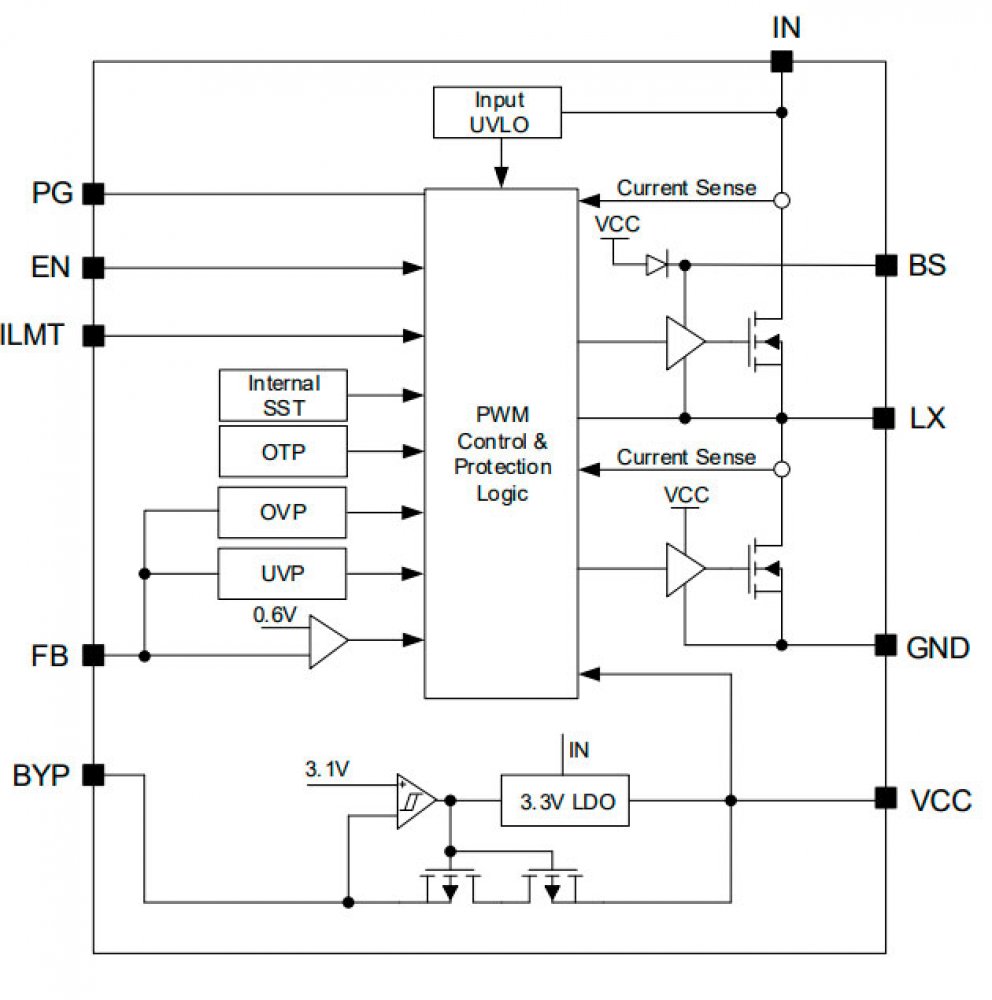

The SY8284 develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 4A current over a wide input voltage range of 4V to 23V. Silergy-s proprietary Instant-PWM- fast-response, constant-on-time (COT) PWM control method supports high input/output voltage ratios (low duty cycles), and fast transient response maintaining a near constant operating frequency over line, load and output voltage ranges.

This control method provides stable operation without complex compensation and even with low ESR ceramic capacitors. Internal 85m- power and 35m- synchronous rectifier switches provide excellent efficiency over a range of applications, especially for low output voltages and low duty cycles. SY8284 also integrates a bypass switch which allows the IC to be powered by external DC source.

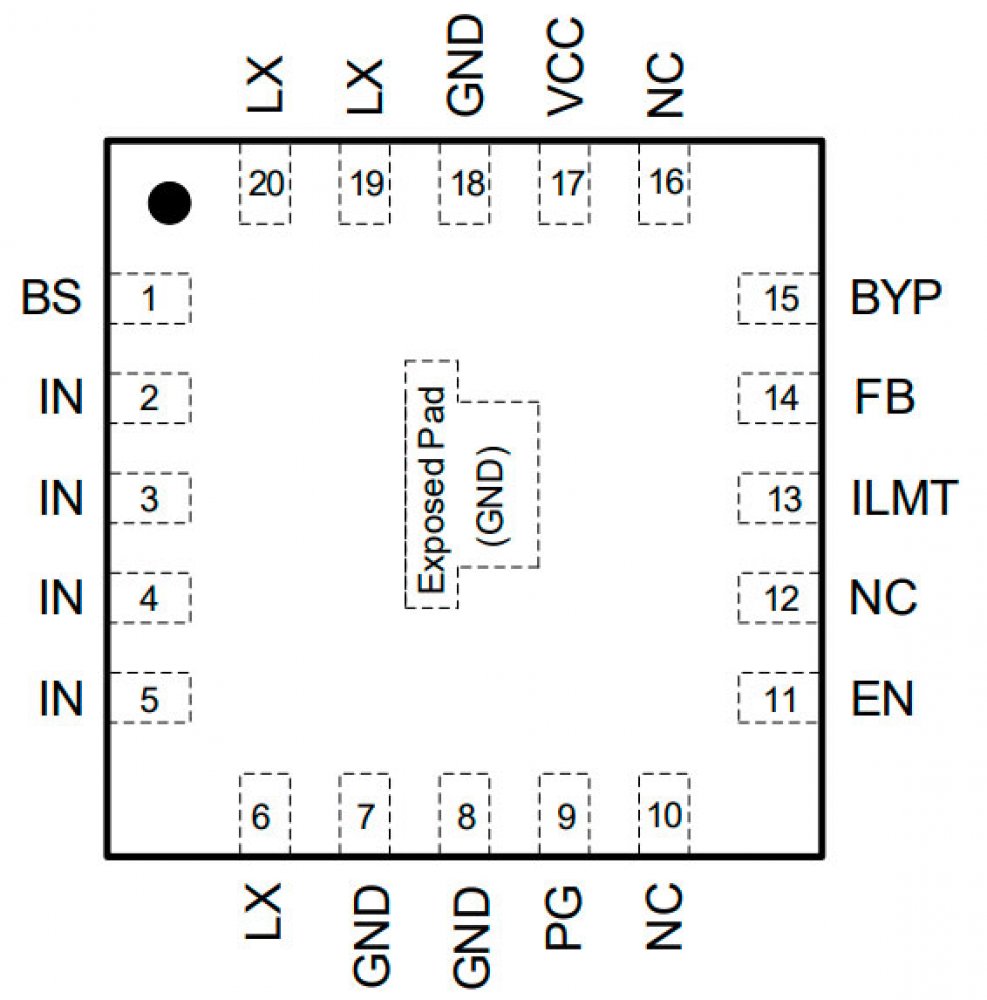

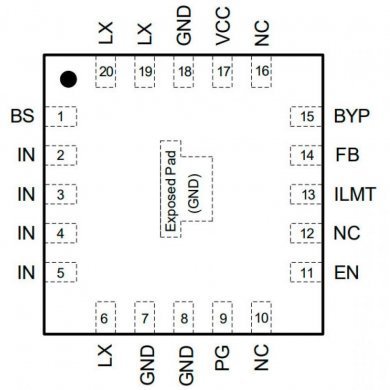

Cycle-by-cycle current limit, input under voltage lock-out, internal soft-start, output under voltage protection and over voltage protection, and thermal shutdown provide safe operation in all operating conditions. The SY8284 is available in a compact QFN3×3-20 package.

Features
- Low RDS(ON) for Internal Switches (Top/Bottom): 85/35m-
- Wide Input Voltage range: 4~23V
- Instant PWM Architecture to Achieve Fast Transient Responses
- Internal 600µs Soft-start Limits the Inrush Current
- Pseudo-constant Frequency: 500kHz
- 4A Output Current Capability
- ±1% Internal Reference Voltage
- Optional Bypass Input
- Power Good Indicator
- Output Discharge Function
- Output Current Limit Protection
- Latch off Mode Output Under Voltage Protection
- Latch off Mode Output Over Voltage Protection
- Programmable Bottom FET Current Limit
- Input Under Voltage Lock-out(UVLO)
- Latch off Mode Over Temperature Protection
- RoHS Compliant and Halogen Free
- Compact Package: QFN3×3-20

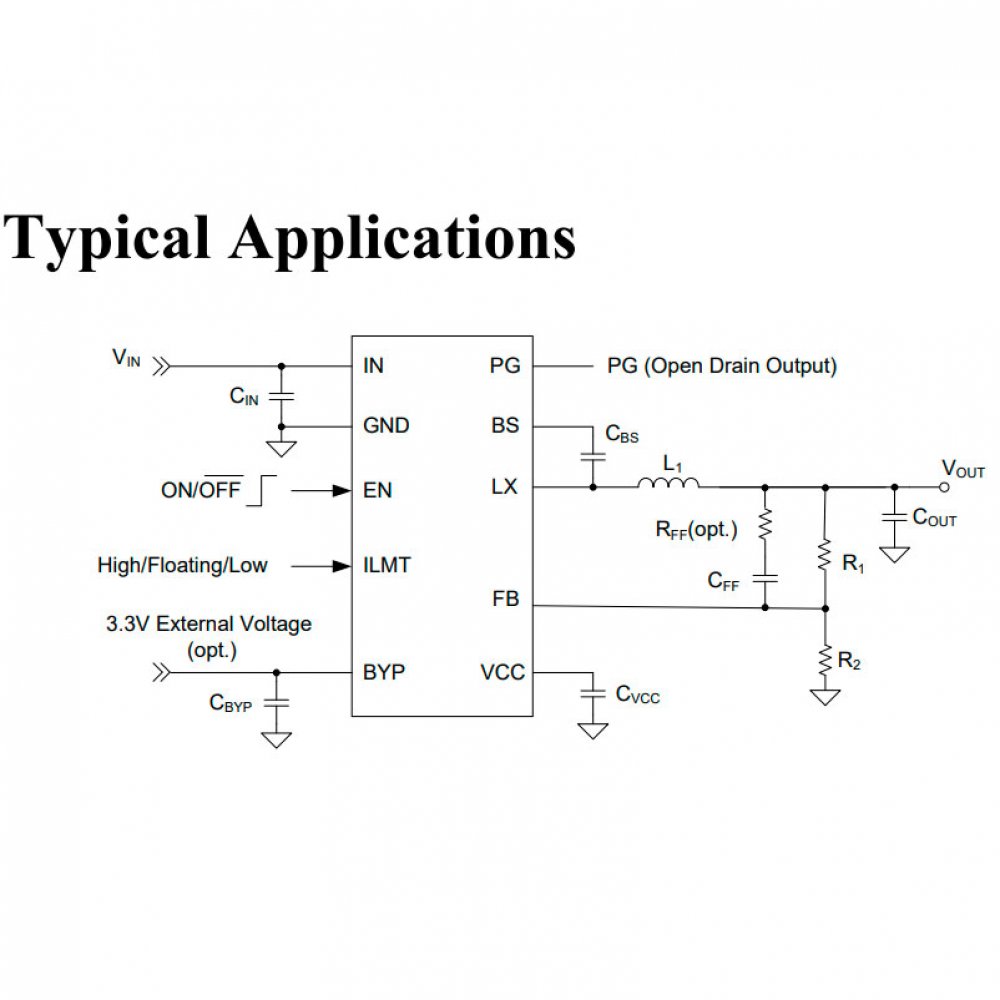

Applications
- LCD-TV/Net-TV/3DTV
- Set Top Box
- Notebook
- High Power AP


Maiores detalhes de SY8284RAC no site do fabricante:
https://www.silergy.com/zh/download/downloadFile?id=3858&type=product&ftype=data


Tags de SY8284RAC: SY8204C, SY8284RAC, SY8284BL, SY8284B, SY8284CRAC, SY8284C, SY8284BRAC, BIEAQC, B1EAQC, BlEAQC, BIDCDA, High Efficiency Fast Response, 4A, 23V Input Synchronous Step Down Regulator, Silergy Corporation

SY8284RAC High Efficiency Fast Response 4A 23V Input DC/DC Synchronous Step Down Regulator QFN20

Condição de SY8284RAC:
novo em embalagem comercial

Garantia  de  SY8284RAC:
3 meses direto com a Net Computadores


The SY8284 develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 4A current over a wide input voltage range of 4V to 23V. Silergy-s proprietary Instant-PWM- fast-response, constant-on-time (COT) PWM control method supports high input/output voltage ratios (low duty cycles), and fast transient response maintaining a near constant operating frequency over line, load and output voltage ranges.

This control method provides stable operation without complex compensation and even with low ESR ceramic capacitors. Internal 85m- power and 35m- synchronous rectifier switches provide excellent efficiency over a range of applications, especially for low output voltages and low duty cycles. SY8284 also integrates a bypass switch which allows the IC to be powered by external DC source.

Cycle-by-cycle current limit, input under voltage lock-out, internal soft-start, output under voltage protection and over voltage protection, and thermal shutdown provide safe operation in all operating conditions. The SY8284 is available in a compact QFN3×3-20 package.

Features
- Low RDS(ON) for Internal Switches (Top/Bottom): 85/35m-
- Wide Input Voltage range: 4~23V
- Instant PWM Architecture to Achieve Fast Transient Responses
- Internal 600µs Soft-start Limits the Inrush Current
- Pseudo-constant Frequency: 500kHz
- 4A Output Current Capability
- ±1% Internal Reference Voltage
- Optional Bypass Input
- Power Good Indicator
- Output Discharge Function
- Output Current Limit Protection
- Latch off Mode Output Under Voltage Protection
- Latch off Mode Output Over Voltage Protection
- Programmable Bottom FET Current Limit
- Input Under Voltage Lock-out(UVLO)
- Latch off Mode Over Temperature Protection
- RoHS Compliant and Halogen Free
- Compact Package: QFN3×3-20

Applications
- LCD-TV/Net-TV/3DTV
- Set Top Box
- Notebook
- High Power AP


Maiores detalhes de SY8284RAC no site do fabricante:
https://www.silergy.com/zh/download/downloadFile?id=3858&type=product&ftype=data


Tags de SY8284RAC: SY8204C, SY8284RAC, SY8284BL, SY8284B, SY8284CRAC, SY8284C, SY8284BRAC, BIEAQC, B1EAQC, BlEAQC, BIDCDA, High Efficiency Fast Response, 4A, 23V Input Synchronous Step Down Regulator, Silergy Corporation
