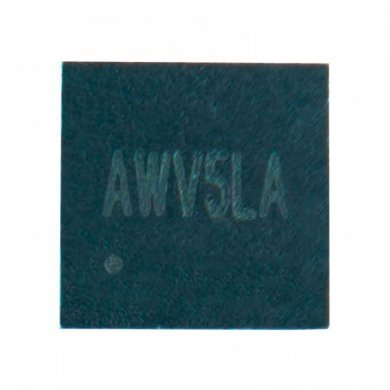

SY8286B Ci PWM DC/DC QFN3x3-20

Name: SY8286B Ci PWM DC/DC QFN3x3-20
Brand: Silergy Corporation
SKU: SY8286B
Price: 10.00 BRL
Availability: InStock

high efficiency synchronous step-down DC/DC

clique para ampliar

*As imagens podem ser ilustrativas

em estoque, envio imediato

R$ 10,00

à vista no Pix ou Boleto

ou R$ 10,53 em 1x no cartão (via site)

ou R$ 11,11 no cartão em até 10x sem juros (apenas na loja física)

R$ 10,00

à vista no Pix ou Boleto

R$ 10,53
em 1x no cartão (via site)

R$ 11,11 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 10,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar Parcelado no MercadoLivre
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar SY8286B

SY8286B Ci PWM DC/DC QFN3x3-20
high efficiency synchronous step-down DC/DC

Condição de SY8286B: Novo em embalagem comercial

Garantia de SY8286B: 3 meses direto com a Net Computadores

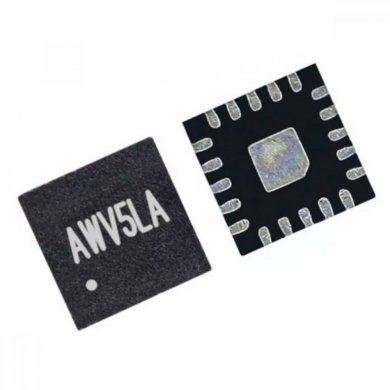

Outros PNs para este item: AWV5LC, AWV5QB, AWV5

High Efficiency Fast Response 6A 23V Input Synchronous Step Down Regulator.

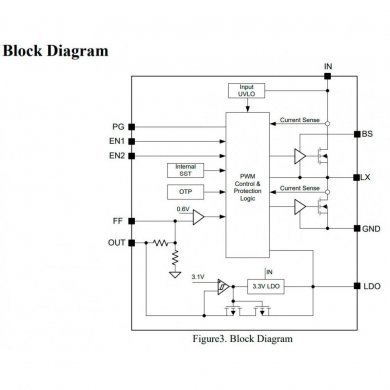

The SY8286B develops a high efficiency synchronous step-down DC/DC regulator with 3.3V fixed output voltage and 6A current rating. The device integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8286B also integrates a 3.3V/100mA LDO with bypass switch and individual enable control.

The SY8286B operates over a wide input voltage range from 4V to 23V. The DC/DC regulator adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 600kHz under heavy load conditions to minimize the size of inductor and capacitor.

Features
- Low RDS(ON) for Internal Switches (Top/Bottom): 38/19 m
- Wide Input Voltage Range: 4-23V
- 3.3V LDO with Individual Enable Control and Bypass Switch
- Integrated Bypass Switch: 1.5
- Instant PWM Architecture to Achieve Fast Transient Responses
- Internal 1.2ms Soft-start Limits the Inrush Current
- Pseudo-constant Frequency: 600kHz.
- 6A Output Current Capability
- /-1.5% Output Voltage Accuracy
- Power Good Indicator
- Output Discharge Function
- Output Current Limit Protection
- Short Circuit Latch-off Protection
- Output Over Voltage Latch-off Protection
- Input UVLO
- Over Temperature Protection
- RoHS Compliant and Halogen Free

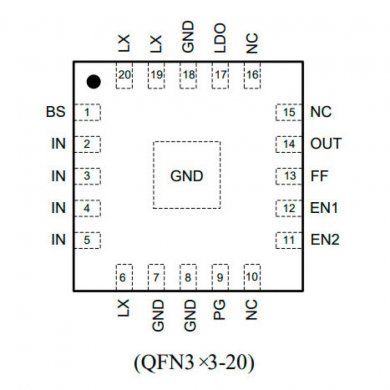

- Compact Package: QFN33-20

Applications
- LCD-TV/Net-TV/3DTV
- Set Top Box
- Notebook
- High Power AP

Maiores detalhes de SY8286B no site do fabricante:
https://www.silergy.com/cn/download/downloadFile?id=3867etype=product&ftype=data
