Gabinetes / Gabinetes Server Rack / SYS-5019C-L

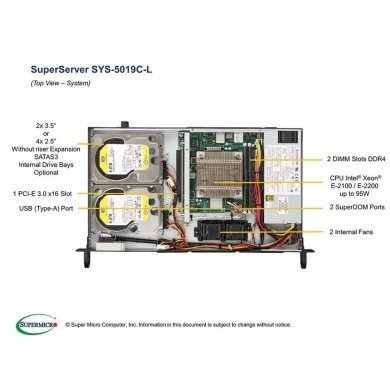

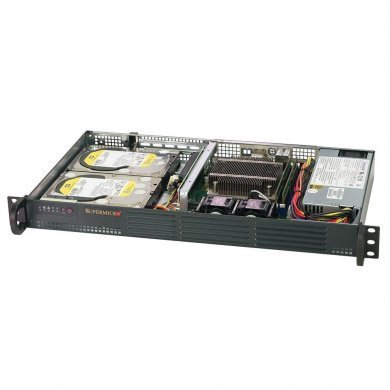

SYS-5019C-L Supermicro Servidor SuperServer 5019C-L 1U LGA1151

Name: SYS-5019C-L Supermicro Servidor SuperServer 5019C-L 1U LGA1151
Brand: SUPERMICRO
SKU: SYS-5019C-L
Price: 9784.00 BRL
Availability: InStock

com placa mãe X11SCL-iF, fonte 200W 80 Plus Gold (Não incluso HD, Processador e memórias)

clique para ampliar

*As imagens podem ser ilustrativas

envio de 30 a 60 dias uteis

R$ 9.784,00

à vista no Pix ou Boleto

ou R$ 10.298,09 em 1x no cartão (via site)

ou R$ 10.870,21 no cartão em até 10x sem juros (apenas na loja física)

R$ 9.784,00

à vista no Pix ou Boleto

R$ 10.298,09
em 1x no cartão (via site)

R$ 10.870,21 no cartão
em até 10x sem juros
(apenas na loja física)

Preço e prazo desatualizados, solicite revisão antes de comprar

Comprar

Preço e prazo desatualizados, solicite revisão antes de comprar

Condição:

Novo em embalagem antiestática

Garantia:

12 meses direto com a Net Computadores

NCM:

84715010

R$ 9.784,00

à vista no pix

Comprar

Condição:
Novo em embalagem antiestática

Garantia:
12 meses direto com a Net Computadores

NCM: 84715010

Cotação PJ mais de uma unidade

Indicar SYS-5019C-L

SYS-5019C-L Supermicro Servidor SuperServer 5019C-L 1U LGA1151
com placa mãe X11SCL-iF, fonte 200W 80 Plus Gold (Não incluso HD, Processador e memórias)

Condição de SYS-5019C-L: Novo em embalagem antiestática

Garantia de SYS-5019C-L: 12 meses direto com a Net Computadores

Product SKUs
SYS-5019C-L
SuperServer 5019C-L (Black)

Motherboard
Super X11SCL-iF

Processor (not included)
CPU
Single Socket H4 (LGA 1151),
CPU TDP support up to 95W
Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core- i3 / Pentium® / Celeron® Processors
Cores
6 cores, 12 threads
Note
BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series

System Memory (not included)
Memory Capacity
2 DIMM slots
Up to 64GB Unbuffered ECC UDIMM
Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
32GB, 16GB, 8GB, 4GB

On-Board Devices
Chipset
Intel® C242 chipset
SATA
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel® I210-AT
Video
ASPEED AST2500 BMC

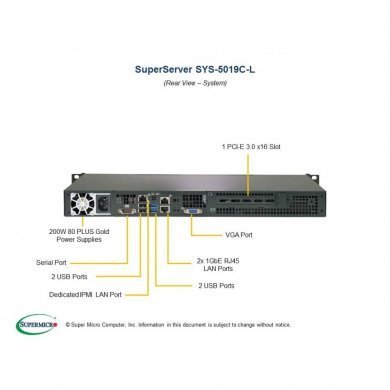

Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.1 ports (rear)
2 USB 2.0 ports (rear)
Video
1 VGA port
Serial Port / Header
1 COM port (rear)
TPM
1 TPM 2.0 Header

System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0

Management
Software
Intel® Node Manager
IPMI 2.0
NMI
SSM, SPM, SUM
Watch Dog
SuperDoctor® 5
Chassis
Form Factor
1U Rackmount
Model
CSE-504-203B

Dimensions and Weight
Height
1.7 (43mm)
Width
17.2 (437mm)
Depth
9.8 (249mm)
Package
6.1 (H) x 25.8 (W) x 18.3 (D)
Weight
Gross Weight: 12 lbs (5.44 kg)
Net Weight: 8 lbs (3.63 kg)
Available Colors
Black

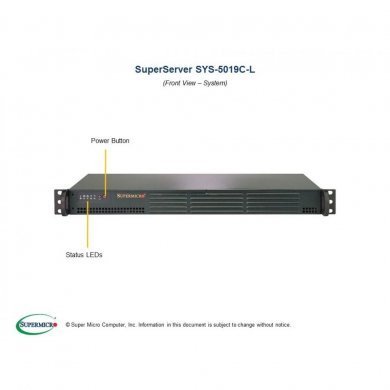

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED

Expansion Slots
PCI-Express
1 PCI-E 3.0 x16 slot
M.2
M.2 Interface: 1 SATA/PCI-E 3.0 x4
M.2 Form Factor: 2280
M.2 Key: M-Key

Drive Bays
Internal
2 Fixed 3.5 drive bay or 4 Fixed 2.5 drive bays

System Cooling
Fans
2x 4cm PWM fan

Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
100 - 240V, 50-60Hz, 2.6 Amp Max
5V
8.0 Amp (max.)
5V standby
2.0 Amp (max.)
12V
16 Amp (max.)
-12V
0.5 Amp (max.)
3.3V
8.0 Amp (max.)
Certification   Gold Level Certified
Gold Certified

PC Health Monitoring
CPU
Monitors for CPU Cores, 3.3V, 5V, 12V, 5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature
Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Tags de SYS-5019C-L: SYS-5019C-L, SYS 5019C-L, SYS 5019C L, SYS5019CL, X11SCL-iF, superserver 5019c-l, supermicro superserver 5019c-l, SUPERMICRO

SYS-5019C-L Supermicro Servidor SuperServer 5019C-L 1U LGA1151 com placa mãe X11SCL-iF, fonte 200W 80 Plus Gold (Não incluso HD, Processador e memórias)

Condição de SYS-5019C-L:
Novo em embalagem antiestática

Garantia de SYS-5019C-L:
12 meses direto com a Net Computadores
