Condição de TEA19161T: novo em embalagem comercial

Features

• Distinctive features:
  • Complete ality as a combination with TEA19162T
  • Integrated high-voltage start-up
  • Integrated high-voltage Level Shifter (LS)
  • Very fast start-up (< 500 ms at Vmains = 100 V (AC))
  • Continuously VSUPIC regulation via the SUPHV pin during start-up and protection, allowing minimum SUPIC capacitor values
  • Operating frequencies are outside the audible area at all operating modes
  • Integrated soft start
  • Powergood
  • Maximum 500 kHz half-bridge switching frequency

• Green features:
  • Very high efficiency from low load to high load
  • Compliant with Energy using Product directive (EuP) lot 6
  • Excellent no-load input power (< 75 mW for TEA19161T/TEA19162T/TEA1995T combination)
  • Regulated low opto current, enabling low no-load power consumption
  • Very low supply current during non-switching state in burst mode
  • Adaptive non-overlap time

• Protection features:
  • Supply undervoltage protection (UVP)
  • Adjustable latch or restart for overpower protection (OPP)
  • On-chip overtemperature protection (OTP)
  • Capacitive mode regulation (CMR)
  • Accurate overvoltage protection (OVP)
  • Maximum on-time protection for low-side and high-side driver output
  • Overcurrent protection (OCP)



Target Applications

• Desktop and all-in-one PCs
• LCD television
• Notebook adapter
• Printers
• Gaming console power supplies

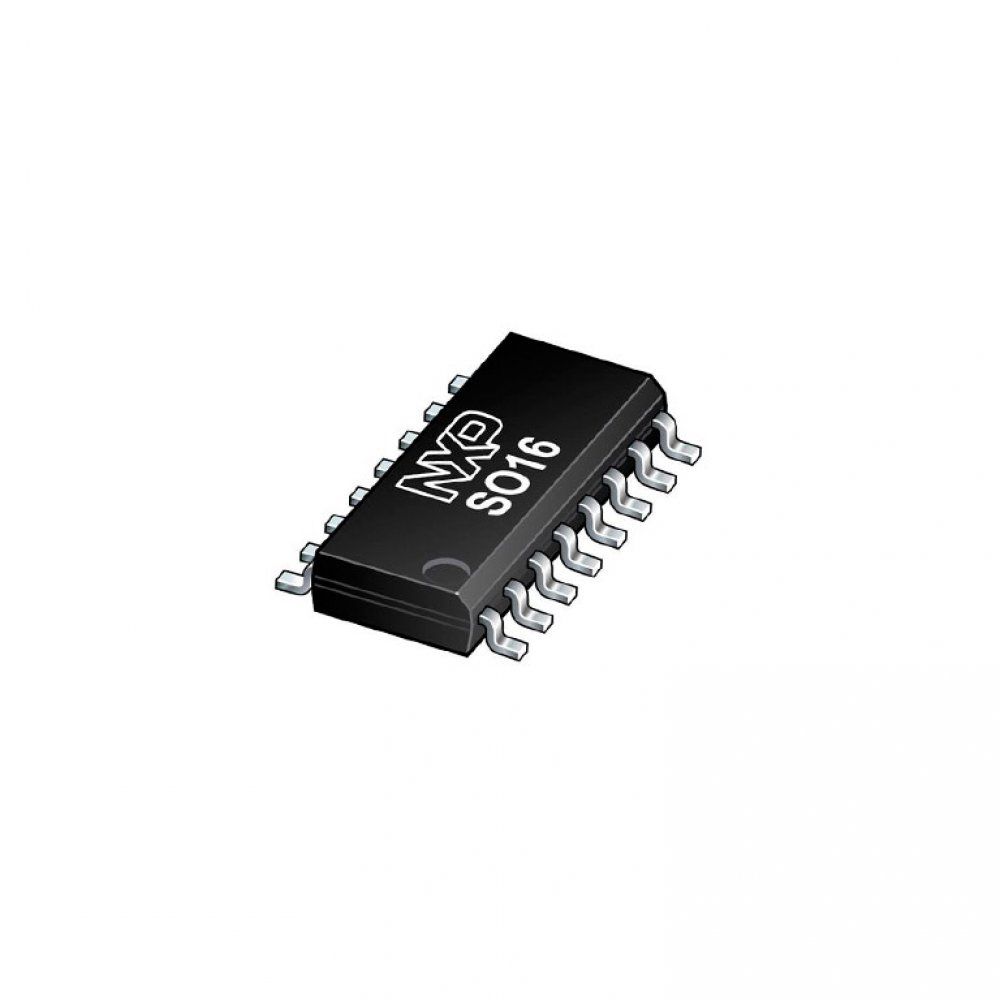

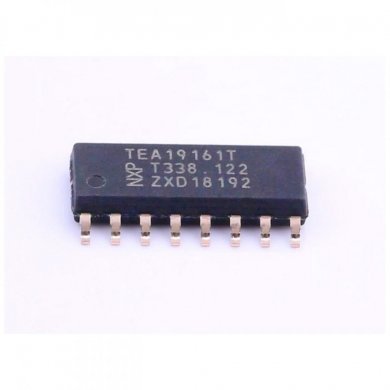

TEA19161T Resonant Power Supply Control IC SOP-16

Condição de TEA19161T: novo em embalagem comercial

Tags de TEA19161T: TEA19162T, EA19162, 19162T, TEA19161T, TEA19161, 19161, Switching Controllers Resonant power supply control IC, PMIC - Power Management ICs, Digital controller for high-efficiency resonant power supply, TEA1995T dual LLC resonant SR controller, TEA19162, ci PFC de fonte ATX, Ci para PFC fonte ATX, CI PFC, PFC ic, NXP Semiconductor
