TPS65982ABZBHR USB Interface IC USB Type-C and USB PD

Name: TPS65982ABZBHR USB Interface IC USB Type-C and USB PD
Brand: Texas Instruments
SKU: TPS65982ABZBHR
Price: 81.00 BRL
Availability: InStock

controller power switch and high-speed multiplexer 96-NFBGA

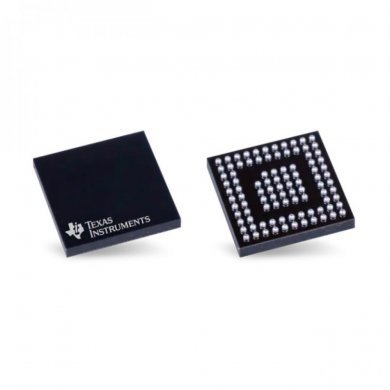

clique para ampliar

em estoque, envio imediato

R$ 81,00

à vista no Pix ou Boleto

ou R$ 84,74 em 1x no cartão (via site)

ou R$ 89,44 no cartão em até 10x sem juros (apenas na loja física)

R$ 81,00

à vista no Pix ou Boleto

R$ 84,74
em 1x no cartão (via site)

R$ 89,44 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 81,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar TPS65982ABZBHR

TPS65982ABZBHR USB Interface IC USB Type-C and USB PD
controller power switch and high-speed multiplexer 96-NFBGA

Condição de TPS65982ABZBHR: Novo em embalagem comercial

Garantia de TPS65982ABZBHR: 3 meses direto com a Net Computadores

Texas Instruments TPS65982 USB Type-C e Power Delivery Controller

Texas Instruments TPS65982 USB Type-C and Power Delivery (PD) Controller provide cable plug and orientation detection at the USB Type-C connector. Upon cable detection, the TPS65982 communicates on the CC wire using the USB PD protocol. When cable detection and USB PD negotiation are complete, the TPS65982 enables the appropriate power path and configures alternate mode settings for internal and (optional) external multiplexers. The mixed-signal front-end on the CC pins advertises default (500mA), 1.5A or 3A for Type-C power sources. It detects a plug event and determines the USB Type-C cable orientation. It can also autonomously negotiates USB PD contracts by adhering to the specified Bi-phase Marked Coding (BMC) and physical layer (PHY) protocol.

FEATURES

USB Power Delivery (PD) controller:
- Mode configuration for a source (host), sink (device), or source-sink
- Bi-phase Marked Encoding/Decoding (BMC)
- Physical Layer (PHY) protocol
- Policy engine
- Configurable at boot and host-controlled
USB type-c specification compliant:
- Detect USB cable plug attach
- Cable orientation and role detection
- Assign CC and VCONN pins
- Advertise default, 1.5A or 3A current for 5V USB type-c power
Port power switch:
- 5V, 3A switch to VBUS for type-c power
- 5V to 20V, 3A bidirectional switch to or from VBUS for USB PD power
- 5V, 600mA switches for VCONN
- Overcurrent limiter, the overvoltage protector
- PD slew rate control and hard reset support

Port data multiplexer:
- USB 2.0 HS data, UART data, and low-speed endpoint
- Sideband use data for alternate modes (DisplayPort and Thunderbolt)
Power management:
- Gate control and current sense for external 5V to 20V, 5A bidirectional NFET switch
- Power supply from 3.3V or VBUS source
- 3.3V LDO output for dead battery support
BGA Microstar junior package:
- 0.5mm pitch
- Through-hole via compatible for all pins
Ul recognized: e169910 and e339631
- Standards used: 2367
IEC certification: no88109
- Standards used: 60950-1(ed.2);am1;am2

Applications
- Notebook Computers
- Tablets and Ultrabooks
- Docking Systems
- Charger Adapters
- USB PD Hosts, Devices, and Dual-Role Ports
- USB PD-Enabled Bus-Powered Devices
- DisplayPort, Thunderbolt, and HDMI

Manufacturer:	Texas Instruments
Product Category:	USB Interface IC
RoHS:
Series:	TPS65982
Product:	USB Switches
Type:	PD Controller
Mounting Style:	SMD/SMT
Package / Case:	NFBGA-96
Standard:	USB-C PD
Speed:	Low Speed (LS)
Data Rate:	480 Mb/s
Supply Voltage - Min:	2.85 V
Supply Voltage - Max:	3.45 V
Operating Supply Current:	1.5 A, 3 A
Minimum Operating Temperature:	- 10 C
Maximum Operating Temperature:	85 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Texas Instruments
Interface Type:	UART, USB
Moisture Sensitive:	Yes
Number of Ports:	1 Port
Operating Supply Voltage:	3.3 V
Port Type:	DFP, DRD, UFP
Product Type:	USB Interface IC

Maiores detalhes de TPS65982ABZBHR no site do fabricante:
https://www.ti.com/lit/ds/symlink/tps65982.pdf?ts=1643200227152&ref_url=https%3A
