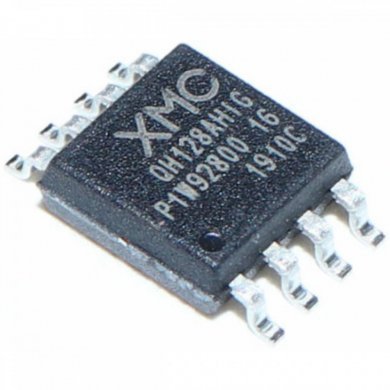

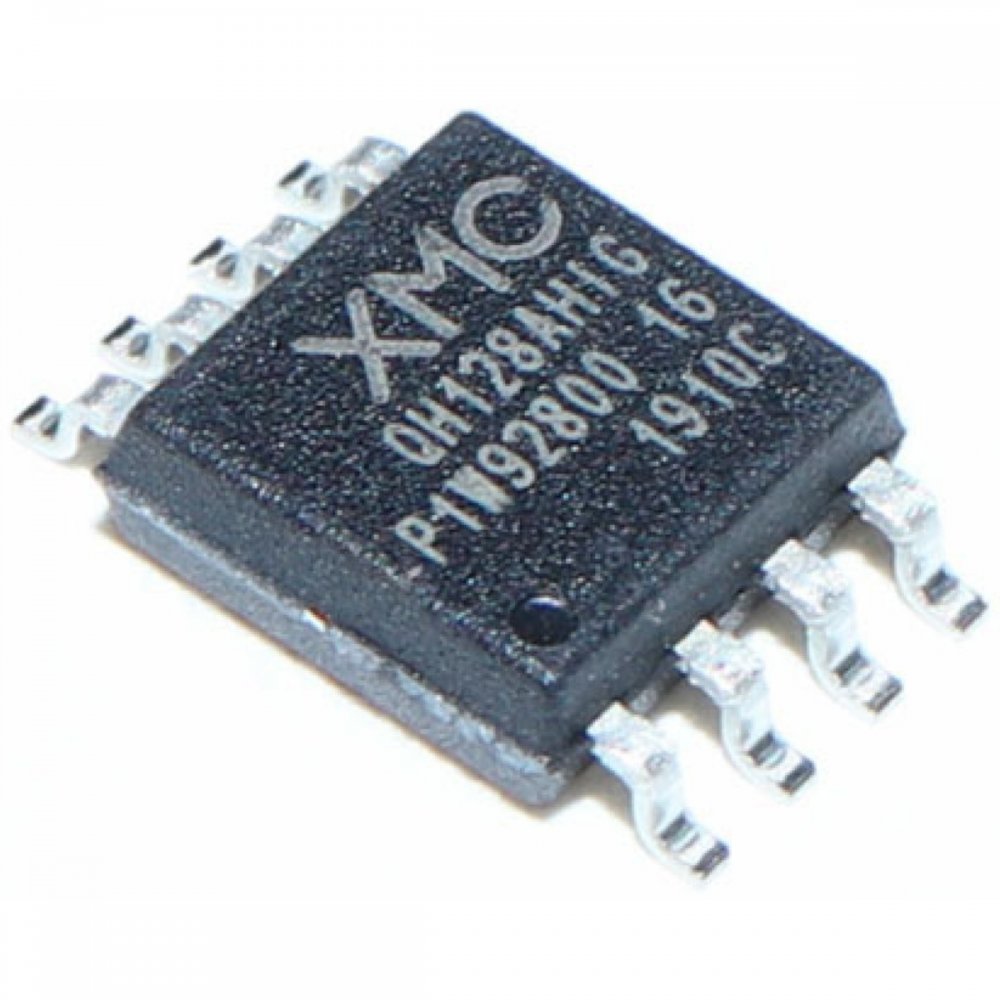

XM25QH128AHIG-KIT2 Kit 2x Ci de Bios QH128AHIG 128MB XMC SPI Flash 3.6V SOP8

kit com 2 unidades

XM25QH128AHIG-KIT2 Kit 2x Ci de Bios QH128AHIG 128MB XMC SPI Flash 3.6V SOP8

*As imagens podem ser ilustrativas

Kit 2x Ci de Bios QH128AHIG 128MB XMC SPI Flash 3.6V SOP8

em estoque, envio imediato

R$ 15,00

à vista no Pix ou Boleto

ou R$ 15,79 em 1x no cartão (via site)

ou R$ 16,67 no cartão em até 10x sem juros (apenas na loja física)

R$ 15,00

à vista no Pix ou Boleto

R$ 15,79
em 1x no cartão (via site)

R$ 16,67 no cartão
em até 10x sem juros
(apenas na loja física)

Comprar

Condição:

Novo em embalagem comercial

Garantia:

3 meses direto com a Net Computadores

NCM:

85423190

R$ 15,00

à vista no pix

Comprar

Condição:
Novo em embalagem comercial

Garantia:
3 meses direto com a Net Computadores

NCM: 85423190

Comprar via
MERCADO LIVRE

Somos MercadoLivre Platinum
Comprar à Vista no MercadoLivre

Cotação PJ mais de uma unidade

Indicar XM25QH128AHIG-KIT2

XM25QH128AHIG-KIT2 Kit 2x Ci de Bios QH128AHIG 128MB XMC SPI Flash 3.6V SOP8
kit com 2 unidades

Condição de XM25QH128AHIG-KIT2: Novo em embalagem comercial

Garantia de XM25QH128AHIG-KIT2: 3 meses direto com a Net Computadores

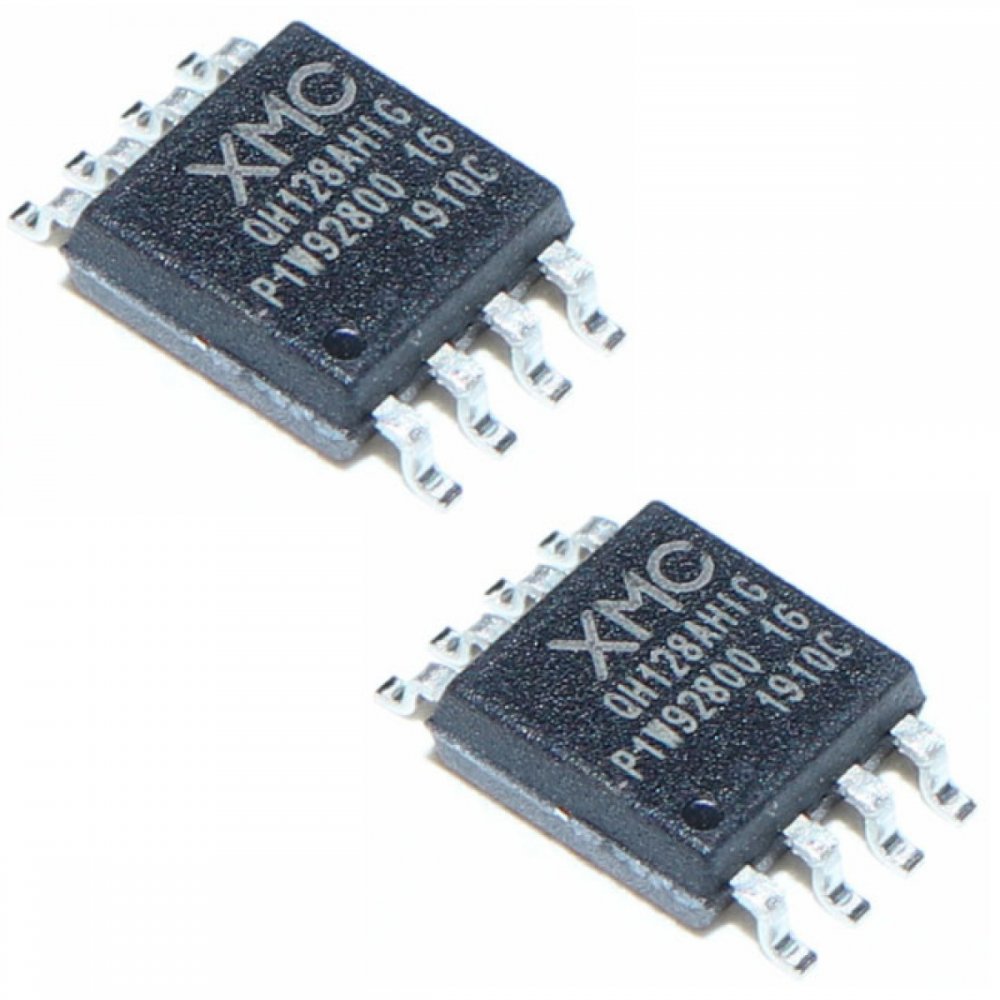

Kit 2x unidades
Ci de Bios QH128AHIG 128MB XMC SPI Flash 3.6V SOP8

128Mb (256 Bytes x 65535 pages) SPI Dual/Quad I/O FLASH NonVolatile SOP8L NOR FLASH ROHS

GENERAL DESCRIPTION
The XM25QH128A is a 128 Megabit (16,384Kbyte) Serial Flash memory, with advanced write protection mechanisms. The XM25QH128A supports the single bit and four bits serial input and output commands via standard Serial Peripheral Interface (SPI) pins: Serial Clock, Chip Select, Serial DQ0 (DI) and DQ1(DO), DQ2(WP#) and DQ3(HOLD#/RESET#). SPI clock frequencies of up to 104Mhz are supported allowing equivalent clock rates of 416Mhz(104Mhz x 4) for Quad Output using the Quad Output read instructions. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The XM25QH128A also offers a sophisticated method for protecting individual blocks against erroneous or malicious program and erase operations. By providing the ability to individually protect and unprotect blocks, a system can unprotect a specific block to modify its contents keeping the remaining blocks of the memory array securely protected. This is useful in applications where program code is patched or updated on a subroutine or module basis or in applications where data storage segments need to be modified without running the risk of errant modifications to the program code segments.

The XM25QH128A is designed to allow either single Sector/Block at a time or full chip erase operation. The XM25QH128A can be configured to protect part of the memory as the software protected mode. The device can sustain a typical of 100K program/erase cycles on each sector or block.

Maiores detalhes de XM25QH128AHIG-KIT2 no site do fabricante:
https://datasheet.lcsc.com/lcsc/1811072025_XMC-XM25QH128AHIG_C328463.pdf
